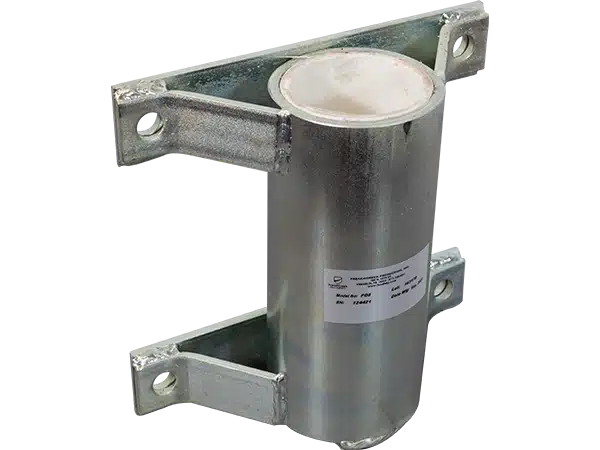

PD8 Wall Mount Sleeve Davit Base

Made in the USA

FrenchCreek’s portable davit system is used to raise, lower, and suspend personnel in confined spaces performing routine work duties or to facilitate rescues in vertical confined space applications such as vaults, manholes, and pump stations.

  • Bolt-on design for existing steel & concrete structures
  • Ideally suited for recurrent access locations
  • 9″ deep sleeve with PVC insert
  • User-supplied fasteners required for installation

PD8 Wall Mount Sleeve Davit Base

FrenchCreek’s portable davit system is used to raise, lower, and suspend personnel in confined spaces performing routine work duties or to facilitate rescues in vertical confined space applications such as vaults, manholes, and pump stations.

  • Bolt-on design for existing steel & concrete structures
  • Ideally suited for recurrent access locations
  • 9″ deep sleeve with PVC insert
  • User-supplied fasteners required for installation

Overview

FrenchCreek's PD8 wall mount sleeve davit base, bolt-on design for existing steel & concrete structures, compatible with PD1 davit mast assembly

FEATURES

  • David System Base Ideally suited for recurrent access locations
  • Quick Ship Item Quick-Ship Available
  • Compatible With PD1 Davit Mast Assembly
  • Installation Bolt on design

SPECIFICATIONS

  • Size 9" deep sleeve insert
  • Standard Sizes 10" x 4.25" x 9.5"
  • Weight Capacity 450 lbs. (205kg) at minimum 2:1 safety factor
  • Item Weight 32 Lbs.
  • Hardware Material Zinc Plated Carbon Steel, PVC insert
  • Standards 1926.502 & 1910.66 when used in complete system
