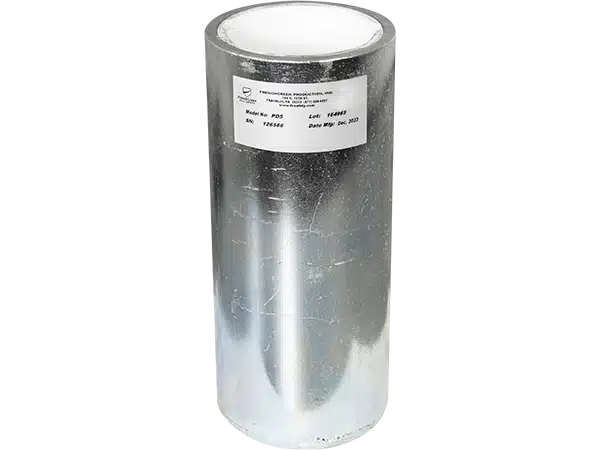

PD5 Davit System Core Mount Sleeve Base

Made in the USA

FrenchCreek’s portable davit system can be equipped with a wide range of davit bases to suit the application of your specific job site.

  • Designed for slip-in installation
  •  Fits 4” (0.10m) diameter core hole in concrete or in an existing steel structure
  • Ideally suited for recurrent access locations
  • 9″ deep sleeve with PVC insert
  • Offers 360° mast rotation

PD5 Davit System Core Mount Sleeve Base

FrenchCreek’s portable davit system can be equipped with a wide range of davit bases to suit the application of your specific job site.

  • Designed for slip-in installation
  •  Fits 4” (0.10m) diameter core hole in concrete or in an existing steel structure
  • Ideally suited for recurrent access locations
  • 9″ deep sleeve with PVC insert
  • Offers 360° mast rotation

Overview

core-mount davit sleeve for 4” (0.10m) diameter core hole in concrete or in an existing steel structure. Compatible with PD1 davit mast assembly.

FEATURES

  • David System Base Core mount sleeve davit base
  • Quick Ship Item Quick-Ship Available
  • Compatible With PD1 Davit Mast Assembly
  • Adjustability Allows 360° mast rotation
  • Installation Fits 4” (0.10m) diameter core hole in concrete or in an existing steel structure

SPECIFICATIONS

  • Size 9" deep sleeve with PVC insert/ 3" inner diameter/ 4" outer diameter
  • Weight Capacity 450lbs (205kg) at minimum 2:1 safety factor
  • Item Weight 9.7 Lbs.
  • Material Zinc Plated Carbon Steel, Sleeve Insert PVC Pipe
  • Standards OSHA 1926.502 and 1910.66 when used in a complete system
