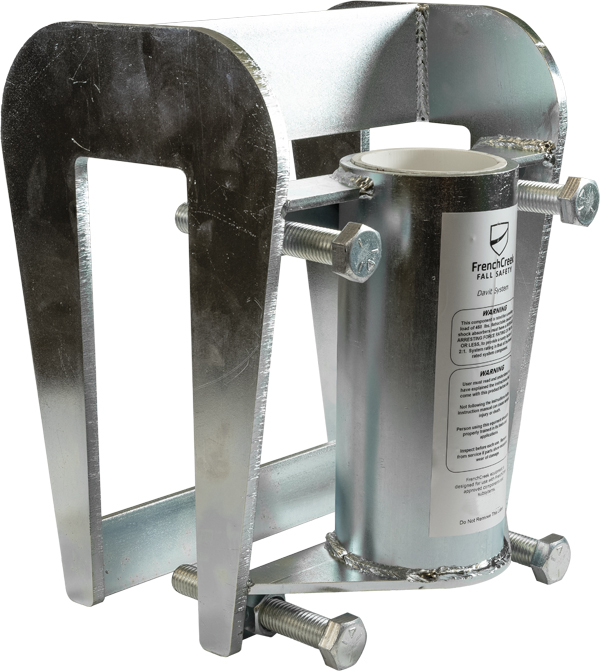

PD9 Davit System Barrell / Trench Box Base

Made in the USA

FrenchCreek’s Portable Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications. The barrel/trench box mount is designed for bolt-on installation to existing edges, walls, and other properly rated structures.

  • For properly rated structures 1/2″ to 3-1/2″ thick
  • 4 pcs. 3/4″ x 5″ hex head set screws for securing to structure.
  • Allows for 180° mast rotation
  • 9″ PVC insert


Barrell/Trench Box Davit Base System. Includes: PD1 Davit Mast Assembly, PD9 Barrel Mount Davit Base, PD3 R50G Mounting Bracket, PD4 MW50G Mounting Bracket, R50G Rescue SRL, MW50G Work Winch


  • System IncludesPD1, PD3, PD4, PD9, R50G, MW50G
  • System IncludesPD1, PD3, PD4, PD9, R50G, MW50G
  • David System BasePD9 Trench Box Mount – 1/2″ to 3-1/2″ thick
  • Rescue SRLR50G 3-way rescue SRL
  • WinchMW50G Work Winch
  • Compatible WithPD1 Davit Mast Assembly
  • Adjustability1/2″ to 3-1/2″ thick properly rated structures
  • InstallationTemporary


  • Size10.5″ x 10.25″ x 14″
  • Weight Capacity130-310lbs lbs. ANSI
  • Capacity1 entrant only, 310 lb. max
  • Item Weight136.75 lbs. complete system
  • Hardware MaterialPowder Coated Aluminum, Plated Alloy Steel
  • Lifeline ConstituentGalvanized steel wire rope
  • 3-way lifeline material/length50′
  • Winch life material/length50′
  • StandardsOSHA 1926.502, ANSI 1910.66
