PD11 Adjustable Barrel Mount Sleeve

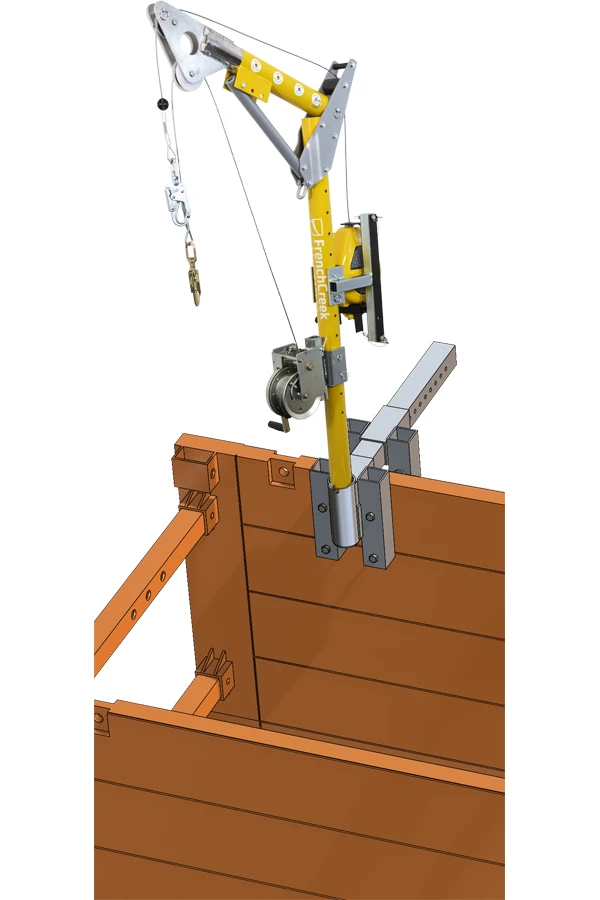

The PD11 Adjustable Barrel Mount Sleeve is designed for shoring, wall parapet applications where frequent setup over varying wall thickness is required. The PD11 is an optional base for FrenchCreek Fall Safety’s Portable Davit System. The mount is designed to provide fall protection to users in-line with the direction of the barrel. The PD11 can rotate 360° for rescue applications.
- For properly rated structures 3 to 24″ thick
- 8 pcs. 3/4″ x 6″ hex head set screws for securing to structure
- 9” PVC Insert
Overview
The Adjustable Barrel Mount Sleeve is designed for shoring / wall parapet applications where frequent setup over varying wall thickness is required. The PD11 is lightweight yet durable thanks to its welded aluminum body and zinc-plated steel hardware. There are three components to the PD11. The mast end with the mount for the PD1, the adjustable end, and the barrel. The barrel attaches to the mast on the end with a single hole. The adjustment end slides along the barrel and can be secured in several positions on the barrel. The eight bolts are tightened to provide a secure attachment to the mounting location.
FEATURES
- Davit System Base PD11 Adjustable Barrel Mount – 3 to 24″ thick
- Compatible WithPD1 Davit Mast Assembly
- Adjustability 3″ to 24″ thick properly rated structures
- InstallationTemporary
SPECIFICATIONS
- Placement WidthAdjustable from 3″ to 24″
- Size41”x11”x15”
- Weight Capacity130-310lbs lbs. ANSI
- Capacity1 entrant only, 310 lb. max
- Item Weight48 lbs
- Hardware MaterialZinc Plated Alloy Steel
- Material6061-t6 Aluminum
- Standards1926.502 & 1910.66 when used in complete system
