Davit System

Icon

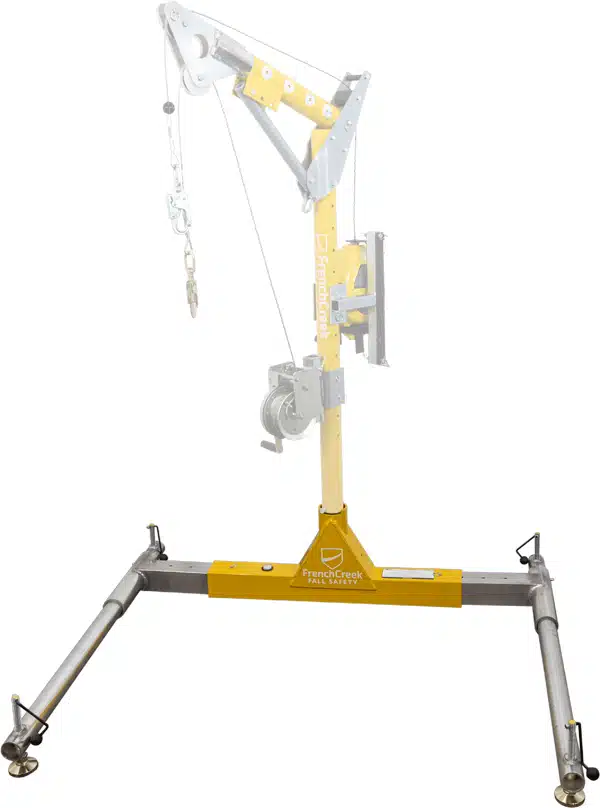

FrenchCreek’s Portable Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications.

  • Davit base adjusts from 36″-60″: Fits a wide range of openings
  • Davit mast adjusts from 12″-30″ offset reach
  • The 3-piece base includes an integrated bullseye level and requires no tools
  • Complete system includes parts numbers: PD1, PD2, PD3, PD4, MW50G. R50G

Davit System

FrenchCreek’s Portable Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications.

  • Davit base adjusts from 36″-60″: Fits a wide range of openings
  • Davit mast adjusts from 12″-30″ offset reach
  • The 3-piece base includes an integrated bullseye level and requires no tools
  • Complete system includes parts numbers: PD1, PD2, PD3, PD4, MW50G. R50G

Overview

FrenchCreek's 4-piece portable davit system designed for confined space entry and exit. Part numbers PD1-PD4 with MW50G and R50G mechanical units. Adjustable davit base, and offset davit mast. Lightweight powder-coated aluminum and stainless steel.

FEATURES

  • InstallationTemporary
  • System IncludesPart Number PD1-PD4, MW50G Winch, R50G rescue SRL

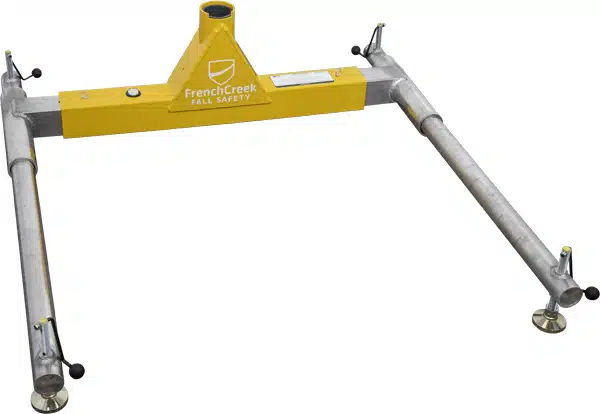

  • Davit System Base36"-60": Fits a wide range of openings
  • Rescue SRLR50G 3-way rescue SRL
  • Lifeline Length & MaterialGalvanized Steel, additional options available
  • WinchMW50G Work Winch
  • FeetTool free adjustable feet
  • BoomAdjusts from 12"-30" offset reach

SPECIFICATIONS

  • Weight Capacity130-310 Lbs. ANSI, 400 Lbs. OSHA
  • Capacity1 Entrant only, 310 lb. max
  • Item Weight155 lbs.
  • Hardware MaterialPowder coated aluminum, plated alloy steel
  • Lifeline ConstituentGalvanized wire rope
  • StandardsOSHA 1926.502 and ANSI 1910.66
