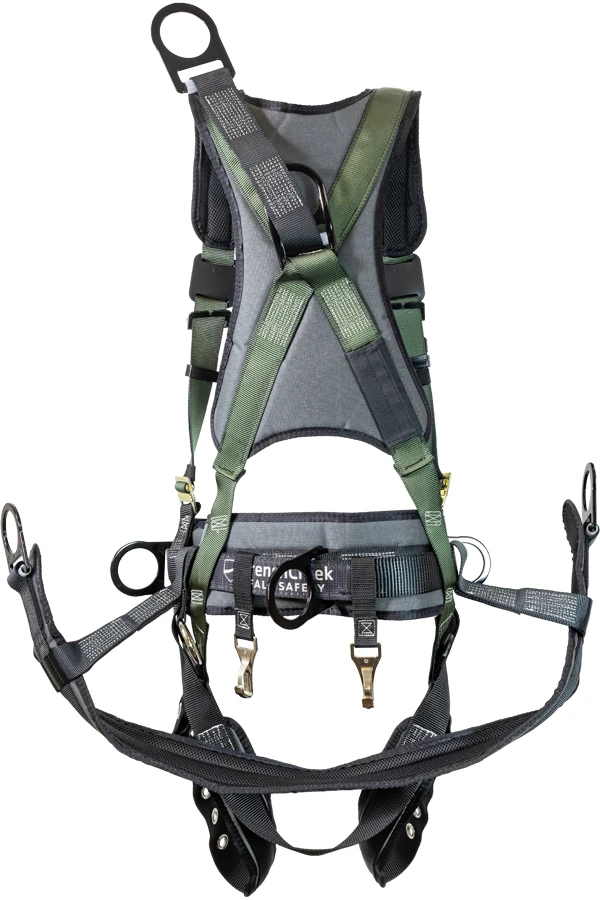

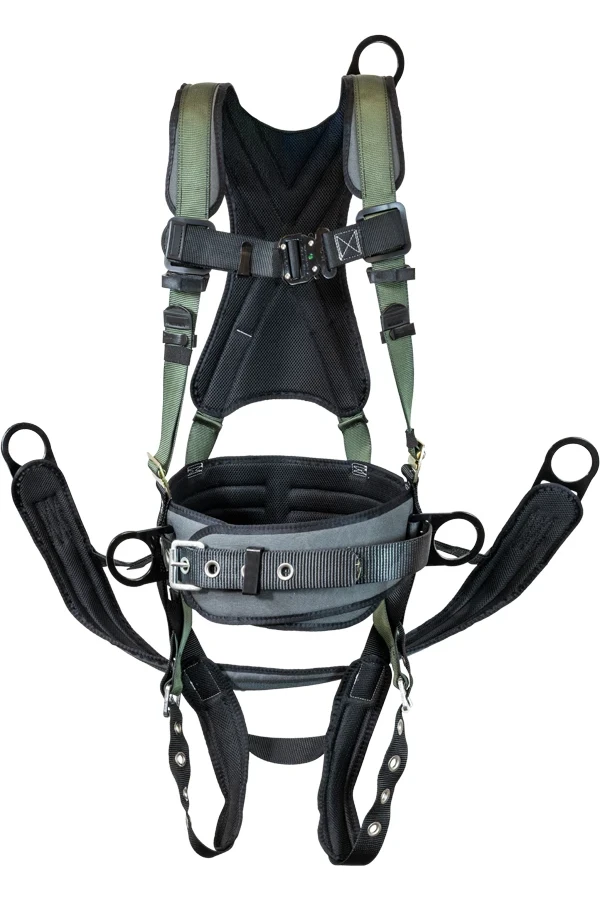

228509BT-OD Stratos Oil Derrick Full Body Harness

Made in the USA

FrenchCreek has designed this version of the Stratos Series Harness to meet the specific demands of the Oil Industry. In addition to standard Stratos harness features this harnesses includes an Oil Derrick padded waist belt, and suspension saddle for climbing the rig.

  • 6 point adjustment with waist pad
  • Hip positioning D-rings
  • Back D-ring extension
  • Back positioning waist D-ring
  • Suspension saddle D-rings
  • Fully encircling comfort waist/belly pad
  • Most options, accessories, & color choices available


Derrick harness, seat saddle with d-rings, fully encircling waist pad with hip d-rings, removable tool belt, comfort shoulder/back pad, back dorsal d-ring with d-ring extension strap, back center work positioning d-ring.


  • Waist/Hip PadWaist/Hip Pad
  • Shoulder/Back PadShoulder/Back Pad
  • Removable Tool BeltRemovable Tool Belt
  • D-Ring LocationsBack Dorsal,Hip,Front Saddle, Back Waist, Extension
  • Integral Extension StrapIntegral Extension Strap
  • Lanyard RetainersLanyard Retainers
  • Sub-Pelvic StrapSub-Pelvic Strap
  • Torso AdjustmentsFriction Buckle Shoulder Adjustment
  • Standard ColorGreen
  • Label CoverFabric


  • Standard SizesS-M, L-XL, XXL
  • Weight Capacity130-310 ANSI, 400 OSHA
  • D-Ring LocationsBack Dorsal,Hip,Front Saddle, Back Waist, Extension
  • Leg Strap Buckle TypeTongue Buckle/Grommet
  • Chest Strap Buckle TypeBayonet
  • Item Weight6.4
  • Hardware MaterialZinc Plated Alloy Steel
  • Webbing MaterialPolyester
  • D-Ring MaterialZinc Plated Alloy Steel
  • StandardsANSI Z359.1, meets or exceeds all OSHA Requirements
