TRV60S12 Traverse Horizontal Lifeline System

Icon

The Traverse Series temporary horizontal lifeline system offers ideal protection when an overhead anchorage doesn’t exist. Extremely lightweight and portable, this system incorporates a modular multi-base design that accommodates a wide range of steel beams.

  • Lengths available from 10-240’
  • Fits 6”-12” width, up to a 2 ¼” flange (options available for beams up to 36”)

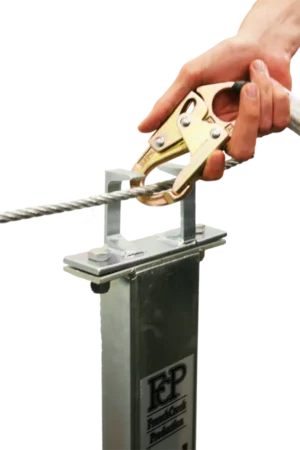

  • Pass-thru adapters allow continuous tie-off and mobility
  • Capacity 2 users per span; no more than 6 per total system
  • 42” working height (above beam)
  • Weight: 60’ system approximately 99.5 lbs.

TRV60S12 Traverse Horizontal Lifeline System

The Traverse Series temporary horizontal lifeline system offers ideal protection when an overhead anchorage doesn’t exist. Extremely lightweight and portable, this system incorporates a modular multi-base design that accommodates a wide range of steel beams.

  • Lengths available from 10-240’
  • Fits 6”-12” width, up to a 2 ¼” flange (options available for beams up to 36”)
  • Pass-thru adapters allow continuous tie-off and mobility
  • Capacity 2 users per span; no more than 6 per total system
  • 42” working height (above beam)
  • Weight: 60’ system approximately 99.5 lbs.

Overview

60 Ft Traverse horizontal lifeline system, steel I-beam base (6"-12" base)

FEATURES

  • Feature 1Ideal protection when overhead anchorage doesn't exist
  • Feature 2Fits flanges 6"-12" width up to 2-1/4" deep (options available for beams up to 36")
  • Feature 3Pass thru adapters allow for continuous tie-off and mobility
  • System Includes2 qty TRV-S12 (steel I-beam stanchion), 1 qty cable assembley with tensioner, 1 qty CHL-CEA (coil energy absorber)

SPECIFICATIONS

  • LengthAdditional lengths available 10'-240' ex. TRV60S12, TRV100S12 (systems 120 Ft or more require intermediate stanchion(s))
  • Capacity2 users per span, no more than 6 per total system
  • Working Height42" working height (above beam)
  • MaterialHigh strength zinc plated steel
  • Lifeline ConstituentGalvanized wire rope
  • StandardsMeets or exceeds OSHA & ANSI requirements
