PD10 Davit System Hitch Mount System

FrenchCreek’s portable davit system is used to raise, lower, and suspend personnel in confined spaces performing routine work duties or to facilitate rescues in vertical confined space applications such as vaults, manholes, and pump stations.

  • Installs into class 3 minimum vehicle trailer hitch, 2″ square receiver
  • Steel hitch bar features PVC mast sleeve and mast hand screw
  • Quick-connect foot bar, vertical post, and hitch bar
  • 6″-30″ height adjustment range provided in 1″ increments

Overview

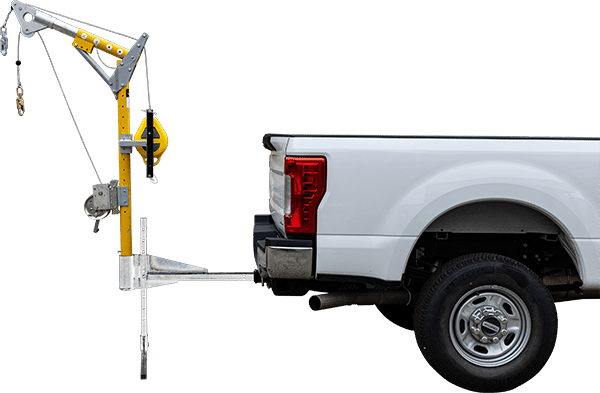

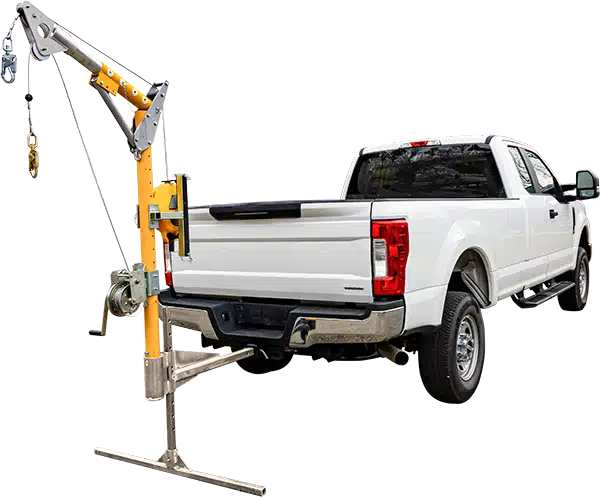

FrenchCreek’s PD10 hitch-mount davit base installs into class 3 minimum vehicle trailer hitch, 2″ square receiver

FEATURES

  • David System Basetrailer hitch mount
  • Quick Ship ItemQuick-Ship Available
  • Compatible WithPD1 Davit Mast Assembly
  • Adjustability6″-30″ height adjustment range provided in 1″ increments
  • InstallationInstalls into class 3 minimum vehicle trailer hitch, 2″ square receiver

SPECIFICATIONS

  • Size 9″ deep sleeve insert
  • Standard Sizes 48″ x 43.5″ x 37″
  • Weight Capacity 450 lbs. (205kg) at minimum 2:1 safety factor
  • Item Weight 53.8 Lbs.
  • Hardware Material Zinc Plated Carbon Steel, PVC insert
  • Standards 1926.502 & 1910.66 when used in complete system
