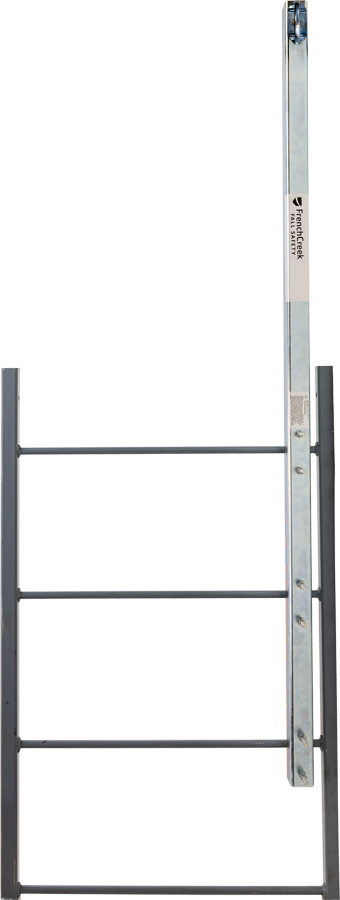

AP36 Ladder Anchor Post

Icon

FrenchCreek’s AP36 ladder anchor post is a quick and portable solution to maintain fall protection on a fixed ladder. This plated steel anchor post is compatible with self-retracting lifelines and FrenchCreek’s vertical climbing systems.

  • Can be positioned to the left or right, and in front or behind the ladder rungs
  • Compatible with Self-Retracting Lifelines
  • Minimal parts and easy setup
  • Provides egress option for FrenchCreek vertical climbing systems

AP36 Ladder Anchor Post

FrenchCreek’s AP36 ladder anchor post is a quick and portable solution to maintain fall protection on a fixed ladder. This plated steel anchor post is compatible with self-retracting lifelines and FrenchCreek’s vertical climbing systems.

  • Can be positioned to the left or right, and in front or behind the ladder rungs
  • Compatible with Self-Retracting Lifelines
  • Minimal parts and easy setup
  • Provides egress option for FrenchCreek vertical climbing systems

Overview

FrechCreek's AP36 can be used at the top of a ladder to provide a secure tie-off point when transitioning from the ladder to the working surface. The post is compatible with FrenchCreek's vertical climbing systems.

FEATURES

  • Compatible WithSelf-Retracting Lifelines & Vertical Climbing Systems
  • InstallationEasily attached with U-bolts
  • System Includes64" anchor post, U-bolts & Nuts

SPECIFICATIONS

  • Length36" above top rail, 64" total length
  • Placement WidthFits 12" on center rungs for 3/4" to 2.25" rung sizes
  • Capacity310 lbs. (2:1 Safety Factor)
  • Item Weight30 lbs.
  • Hardware MaterialPlated alloy steel
  • D-Ring MaterialZinc Plated Alloy Steel
  • Standards29 CFR OSHA 1910.29
